When contacting our company to get a quote, it is always worth asking about the offer for a used machine. It may happen that at a given time we will be selling a demonstration machine, and its configuration will be close to your expectations.

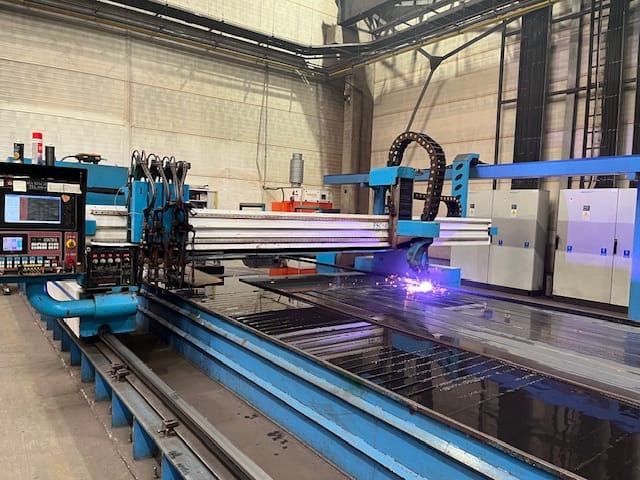

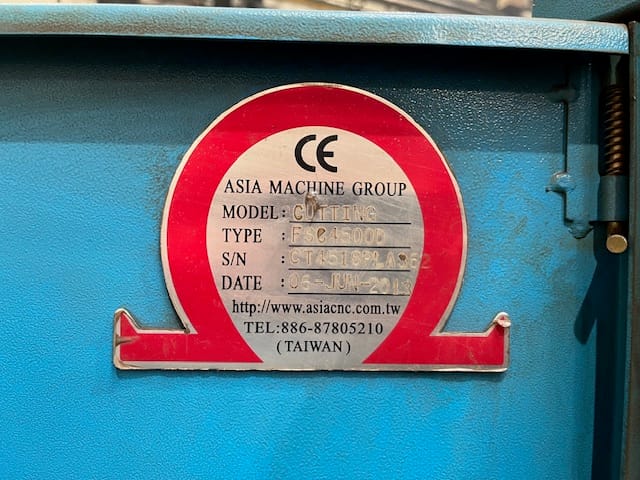

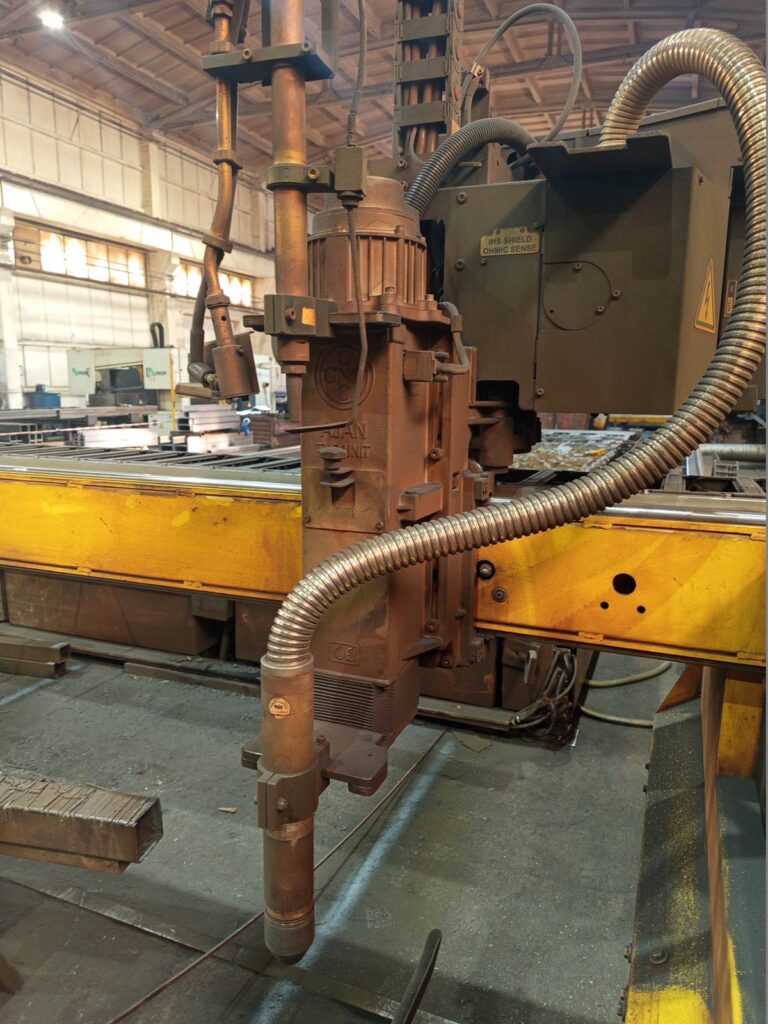

FSC 4500 Series CNC Plasma Cutting Machine with 3D Head
The device is currently operated in Bydgoszcz.
| Price* | Year of production | Availability |
|---|---|---|
| 150 000 PLN | 2012 | Available |
*The price does not include additional costs
| Specification |
|---|
| Dimensions: 4,5 m x 18 m |
| Scope of work: 3,7 m x 15,5 m |
| Gas burner: 4 pcs. cutting thickness 300 mm for mild steel, natural gas, with automatic ignition and height adjustment |
| Plasma: HPR 400 XD, 50 mm piercing, 80 mm edge cutting, with chamfer function |
| Plasma torch: 1 pc. with THC height control and anti-collision protection |
| CAD/CAM system: FASTCAM with AUTO NESTING function |

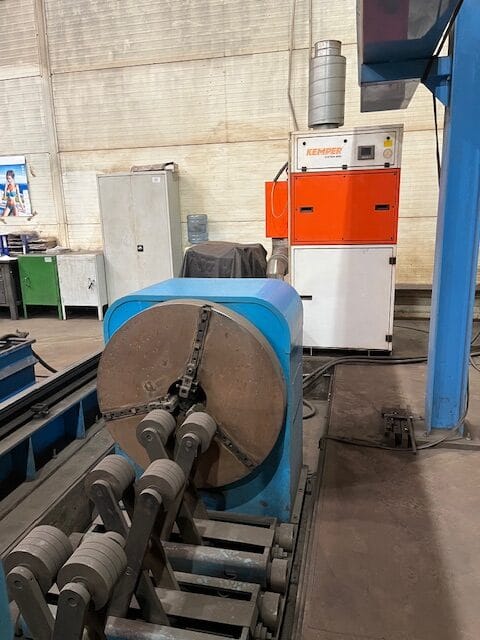

| Pipe prefabrication: yes up to 1000 mm diameter, 14 m length, using the same 3D head |

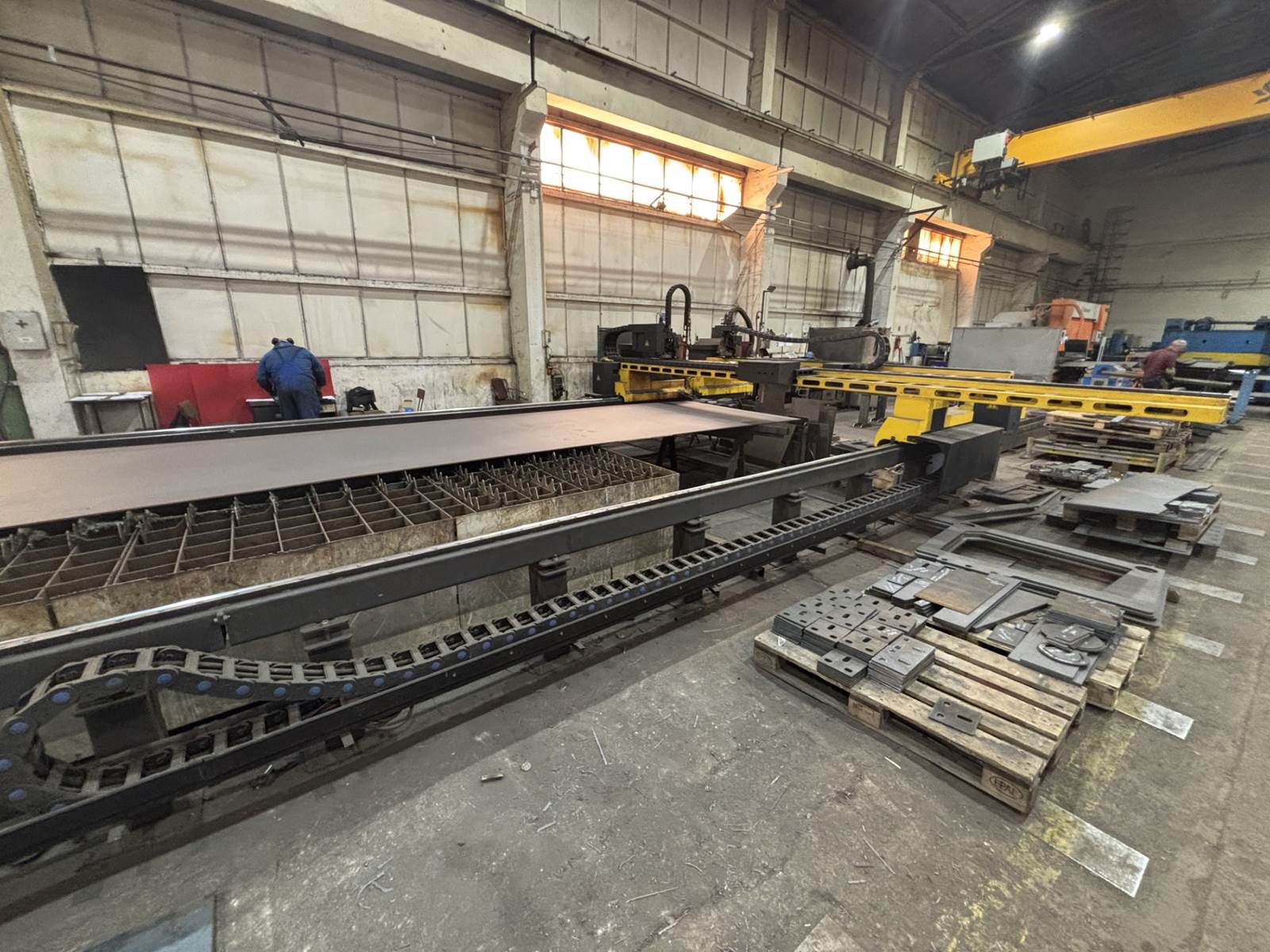

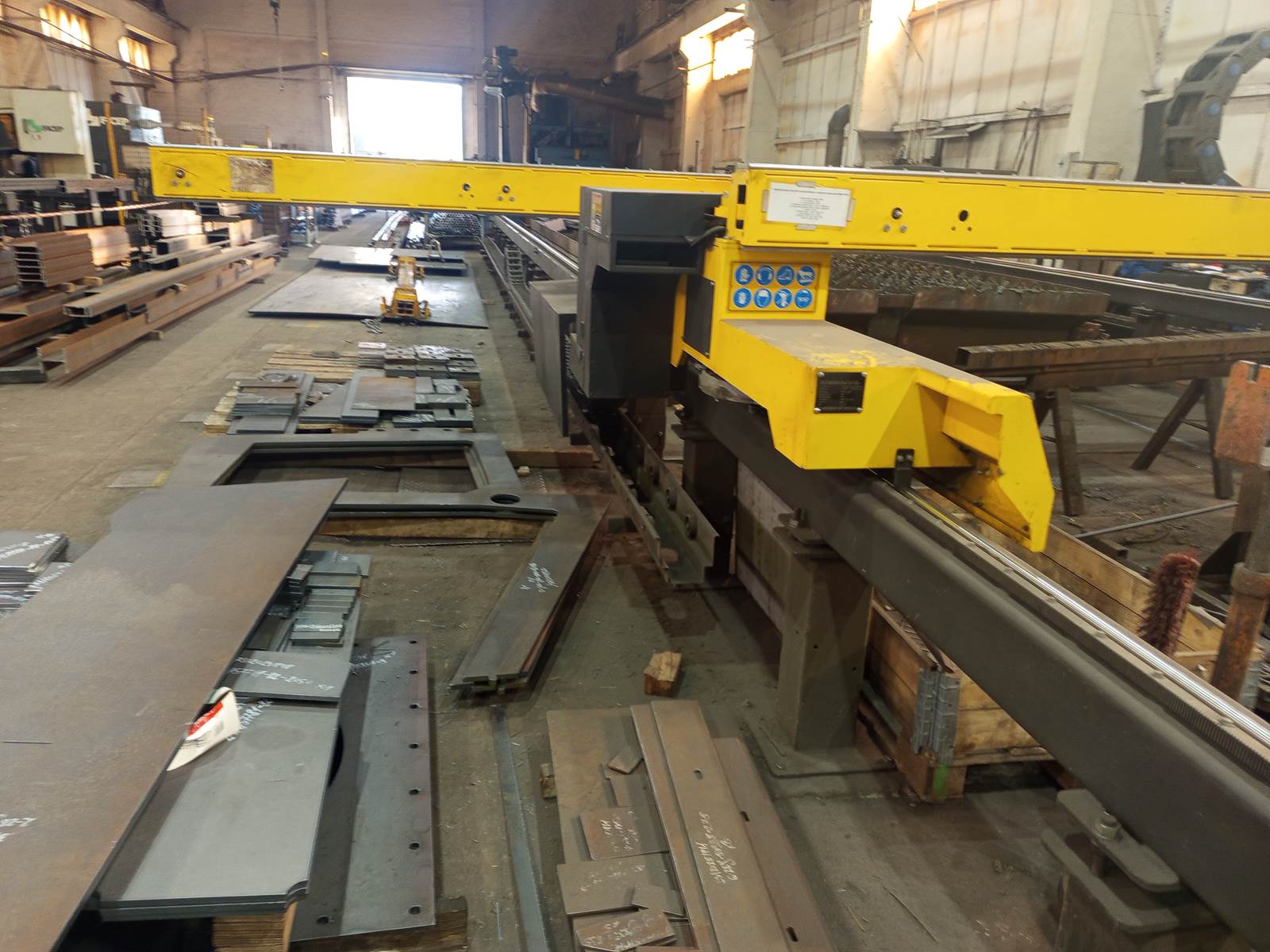

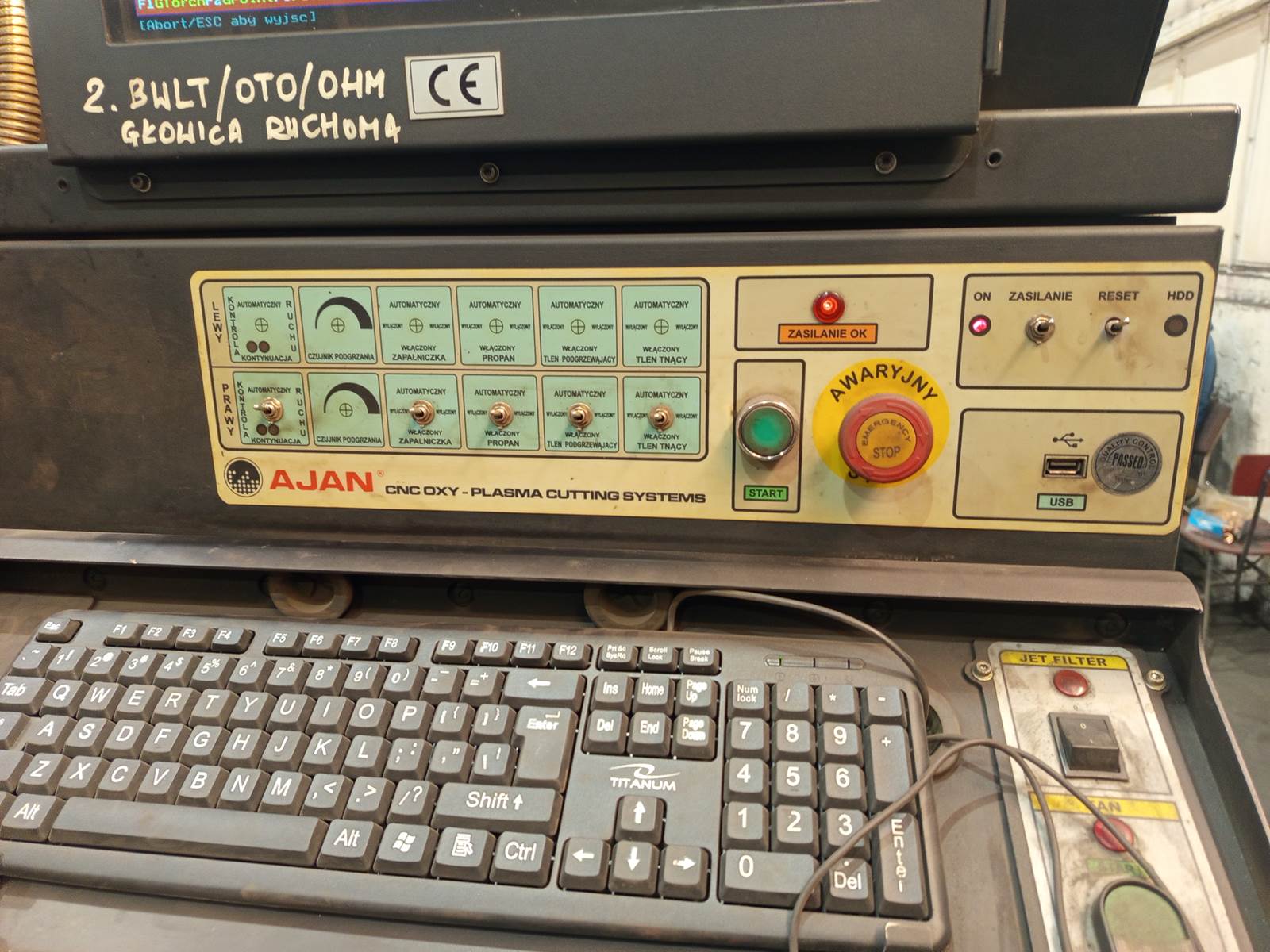

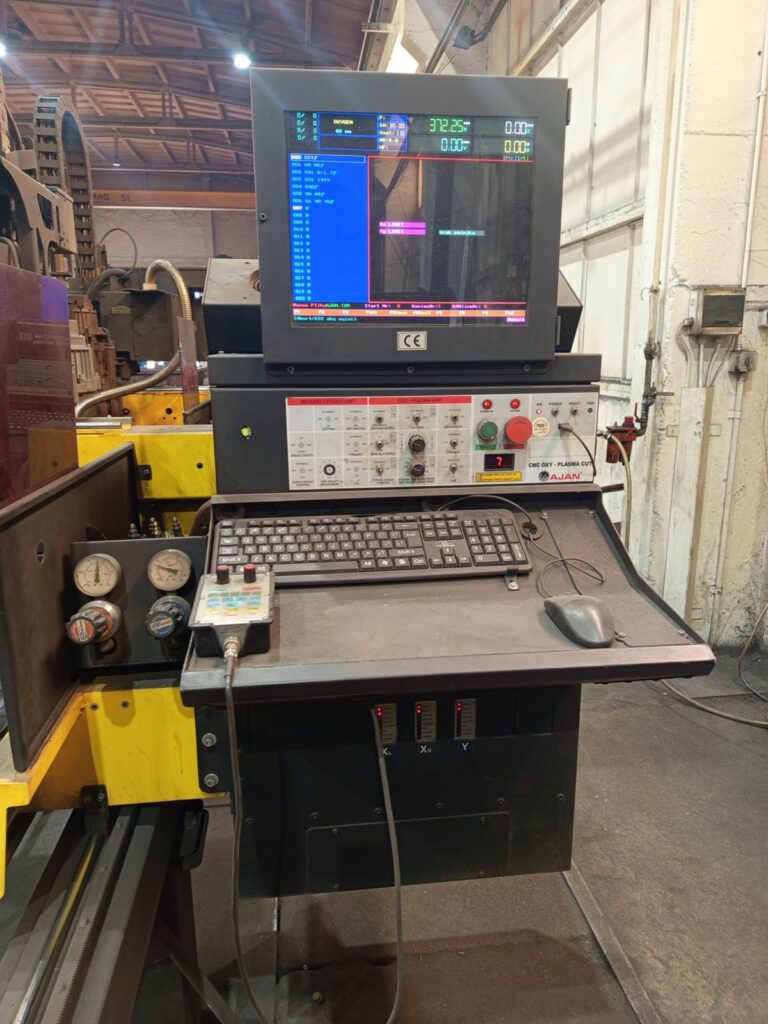

AJAN SHP 260A plasma-gas cutter - two-bridge

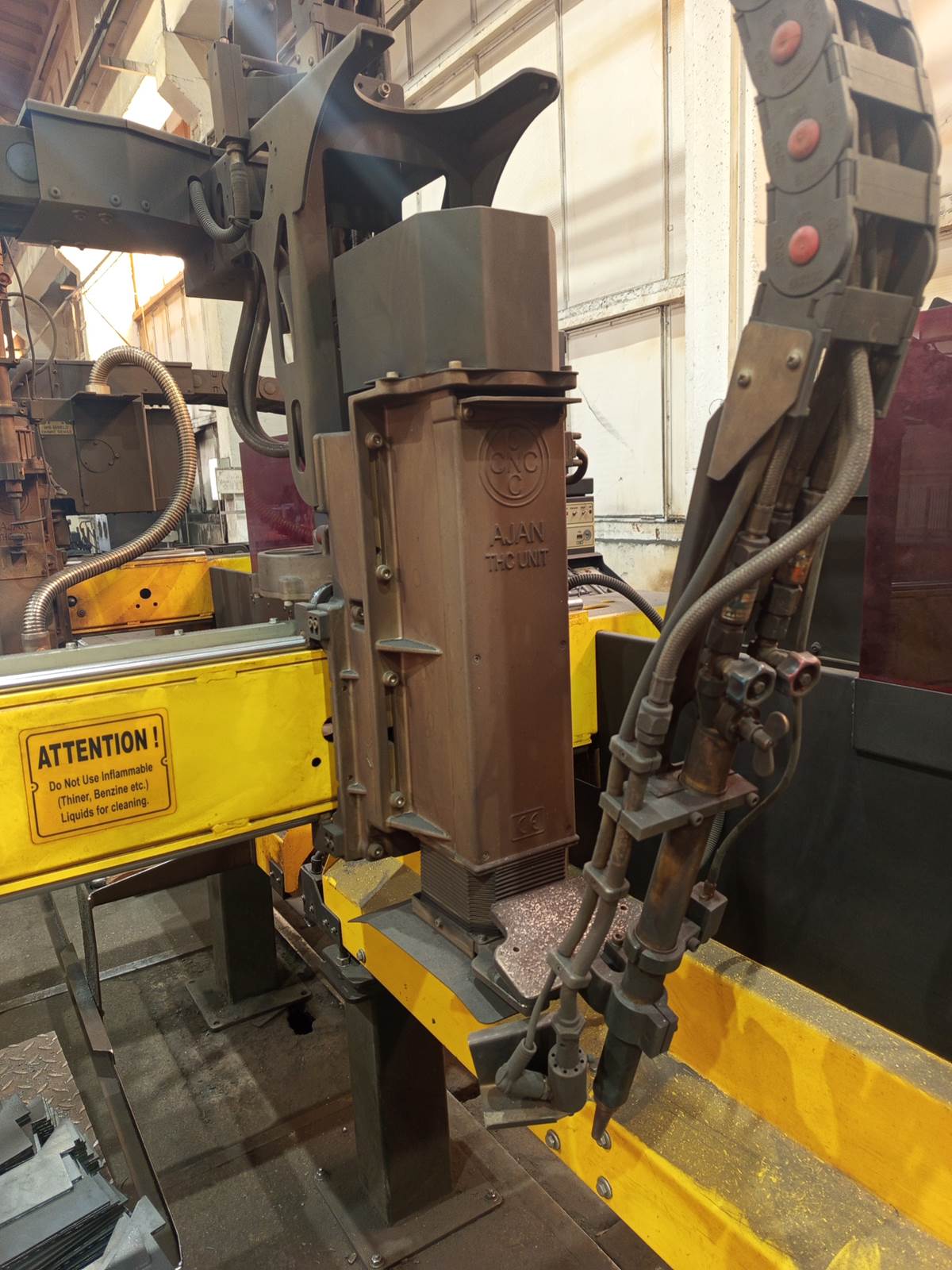

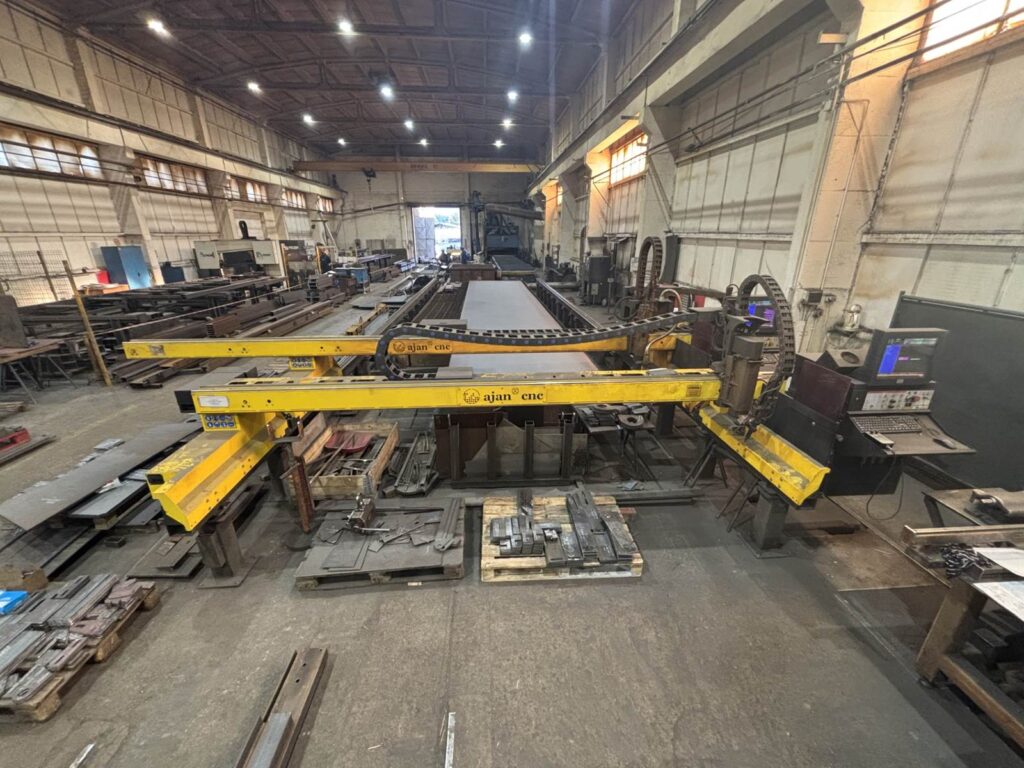

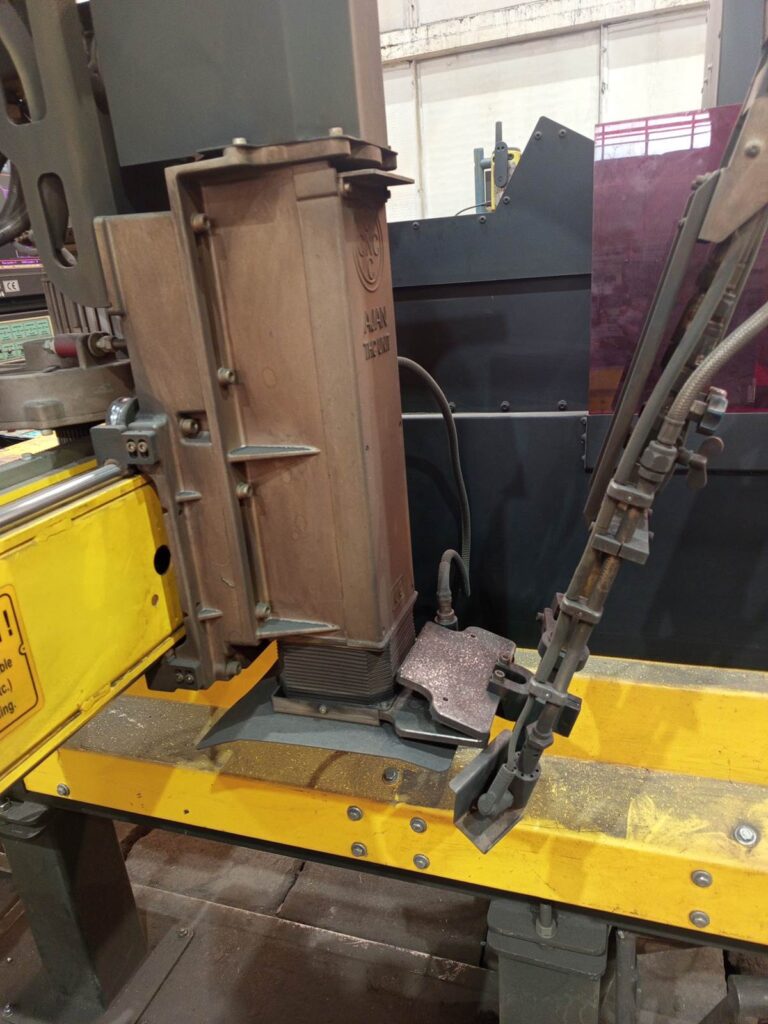

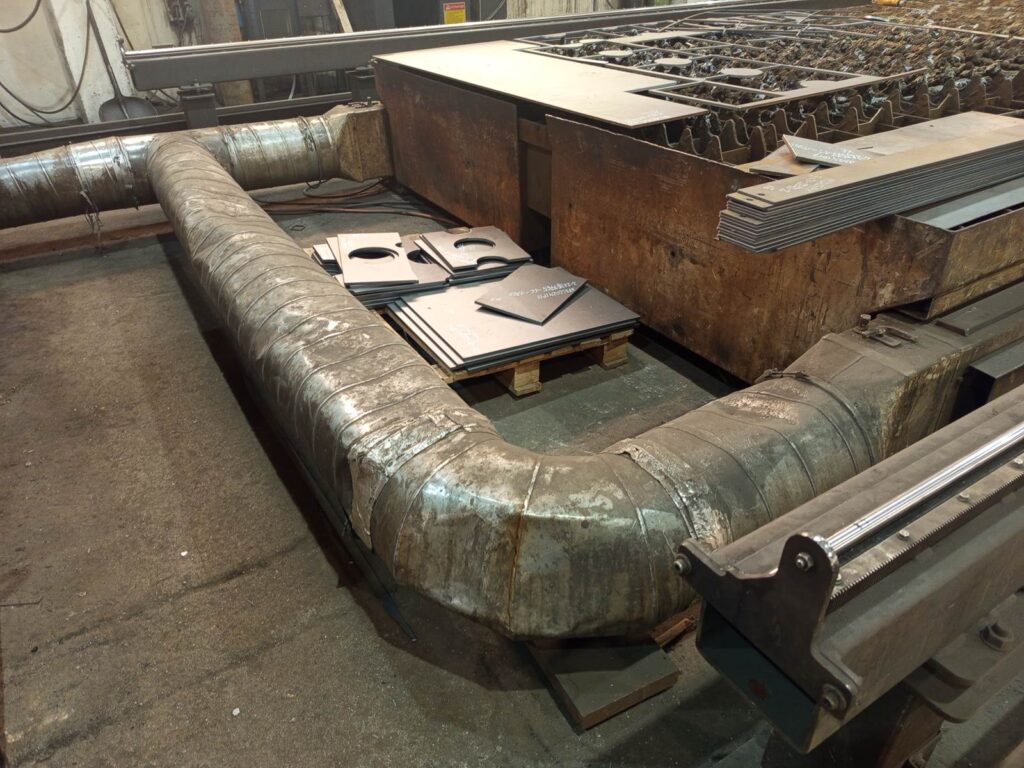

The AJAN SHP 260 plasma cutter, built in Turkey in 2014, is designed for shape cutting in details made of stainless steel, structural steel and aluminum. The contamination created during cutting is leveled by the sectioning and extraction table, increasing the safety of the operator's work. The machine has two bridges, one with a gas burner and the other bridge with a plasma burner.
| Price* | Year of production | Availability |
|---|---|---|
| 150 000 PLN | 2014 | Available |
*The price does not include additional costs
| Technical data |
|---|
| cut materials: structural steel, stainless steel, aluminum |

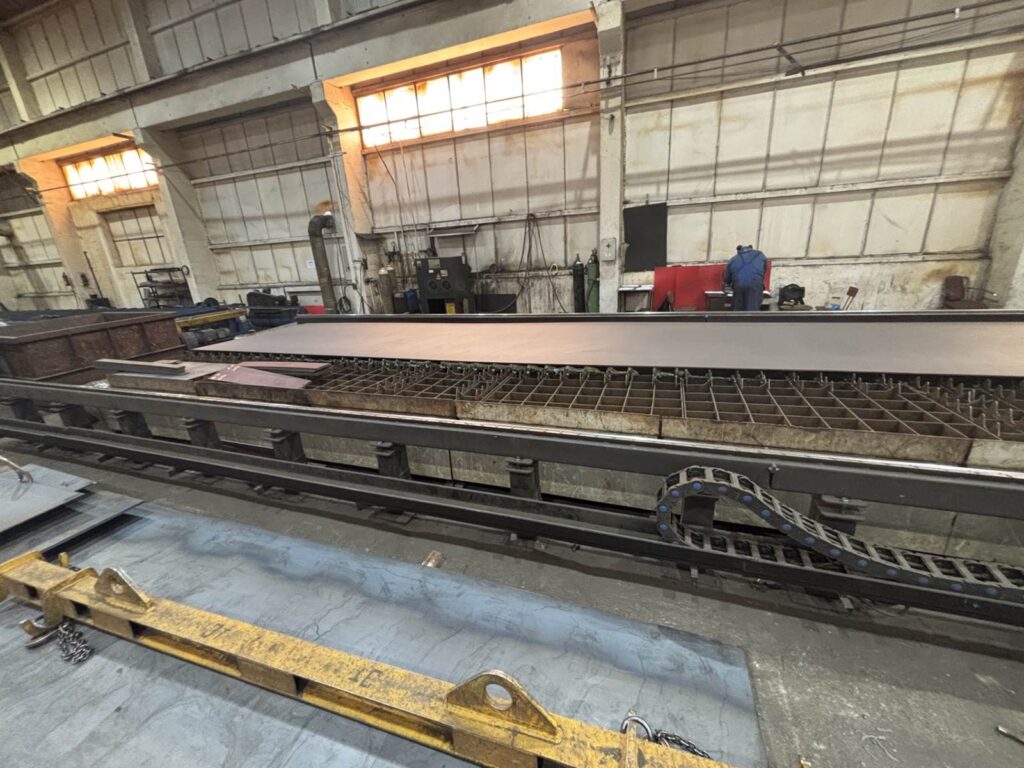

| work table surface (length x width): 9000 x 3000 mm |
| machine portal (maximum dimensions of the burned sheet) (length x width): 3500x12000mm |
| machine power 4kW |
| power supply: 3x 400 V; 50 Hz |
| Plasma cutting |
|---|

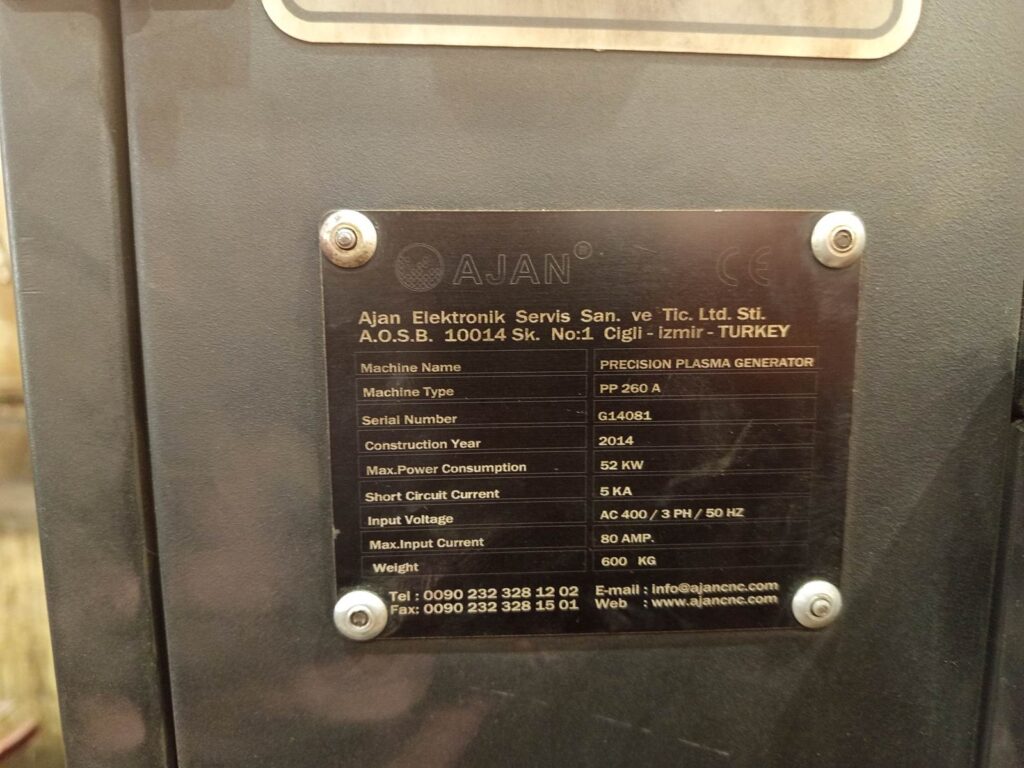

| plasma source power: 260 A |
| generator power 52 kW |
| maximum cutting thickness (structural steel, plasma torch): 30 mm |
| maximum penetration range: 32mm |
| maximum cutting range from the edge: 65mm |
| cutting Precision Plasma 260A bl. 10mm – 4450mm/dk. 20mm – 2180mm/dk, 30mm – 1160mm/dk |
| Line and point routing module: MICROPLAZMA |
| Gas cutting |
|---|
| maximum cutting thickness (structural steel, gas burner): 200 mm |
| type of fuel gas: Acetylene (can be adapted to propane gas) |
